8124302 LED Lighting Unit 330mm, digital (2/pack)

41,90 €

incl. 19% VAT zzgl. Versandkosten

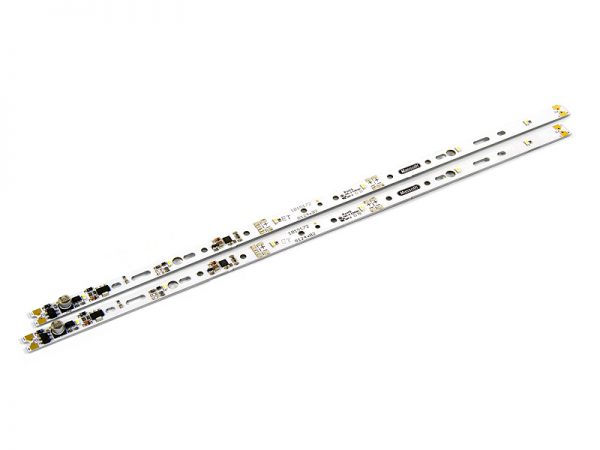

These newly developed lighting units with a total length of 100mm and 3300mm are botht 10mm wide and equipped with warm-white LEDs on a white surface circuit board (picture shows preproduction prototype without white surface). The digital version may of course also be operated in analog mode from 5-24 volts, a separate function output can operate a tail light lantern for example (100mA max.) Screwing holes with different distances allow the option for installation in various available passenger cars.These newly developed lighting units with a total length of 100mm and 3300mm are botht 10mm wide and equipped with warm-white LEDs on a white surface circuit board (picture shows preproduction prototype without white surface). The digital version may of course also be operated in analog mode from 5-24 volts, a separate function output can operate a tail light lantern for example (100mA max.) Screwing holes with different distances allow the option for installation in various available passenger cars.

Documents

Availability: Currently not available Availability: Currently not available

Out of stock

SKU: 8124302 Category:

Description

These newly developed lighting units with a total length of 100mm and 3300mm are botht 10mm wide and equipped with warm-white LEDs on a white surface circuit board (picture shows preproduction prototype without white surface). The digital version may of course also be operated in analog mode from 5-24 volts, a separate function output can operate a tail light lantern for example (100mA max.) Screwing holes with different distances allow the option for installation in various available passenger cars. If necessary the lighting units can be glued or taped or even shortened. All units already feature an integrated power buffer. If required a separate capacitor may be installed on the backside to increase the buffering time (for example when passing switches). The optimized technology allows to offer the LED lighting units in a double pack at a very reasonable price.

From 2023, the LED Lighting Unit will be delivered with a screw terminal, the connection cable will be omitted.
