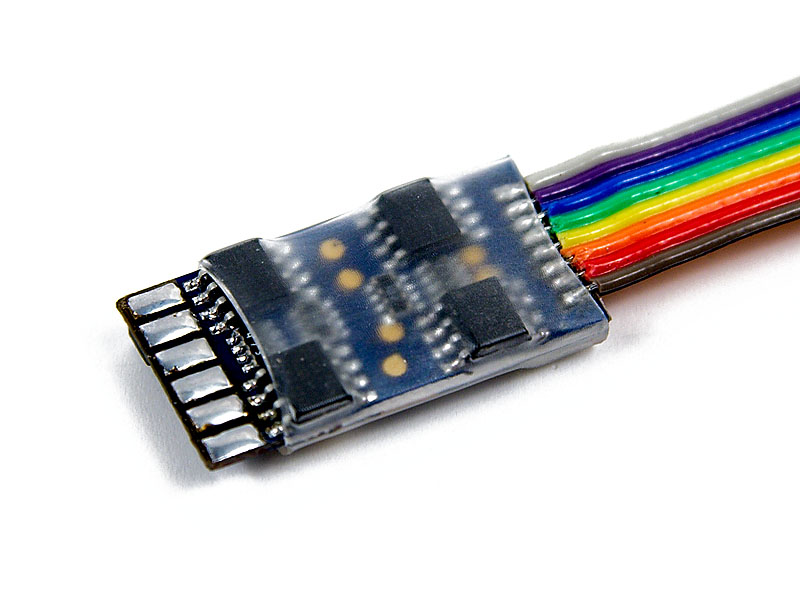

8152001 eMOTION 8FL Function Decoder

34,95 €

incl. 19% VAT

In 2013 the eMOTION 8FL function decoder was refitted with the latest software version including the brand new function mapping with various special effects. The new firmware extends the functionality of the 8FL function decoder. The NMRA/DCC compatible decoder offers 8 function connections (incl. 2 for servo operation) with a maximum load of 1 Amp. It fits directly into the LGB DCC interface used in cars as the L3052 Gourmino and other current RhB cars. The former serial operation is not supported.

Availability: Currently not available Availability: Currently not available

Available Downloads:
991023_BDA_8152001_2018_06.pdf
991023_BDA_8152001_110929.pdf
SKU: 8152001 Category:

Description

The eMOTION 8FL function decoder suitable for e.g. LGB® 30520 Gourmino. Particularly small 8-channel function decoder for switching light and other loads as well as integrated, double servo control.

The eMOTION 8FL is a high-quality function decoder for NMRA DCC and all generations of the LGB® MZS. The already attached plug can be plugged directly into the digital interface of the LGB® 30520 Gourmino dining car, for example. The lights of the wagon can therefore be controlled digitally separately. With various connection options and the adjustable special functions, up to 8 functions (including 2 servo controls) can be operated. Of course, analog or digital operation are automatically detected. The eMOTION 8FL function decoder also supports automatic detection between serial (LGB® MZS) and parallel (NMRA DCC) function data processing.

  • 10239 Locomotive addresses
  • 14 / 28 (usable for servo control)
  • 1 Ampere total power handling
  • 0.6 amps load capacity per function output
  • 8 function outputs (with selectable special functions) of which 2 with servo control function
  • Digital and analogue operation
  • serial and parallel functional data processing (automatic recognition)
  • NMRA DCC
  • LGB® MZS (all generations)
